摘要：本文介绍了Android 13中的Media框架中的ACodec部分（九）。文章详细阐述了ACodec在媒体编码和解码方面的作用，包括其在音频和视频处理中的应用。通过优化ACodec的性能，可以提高Android设备的媒体处理能力，提升用户体验。

前一节我们学习了Output Format Changed事件是如何上抛并且被处理的，这一节我们紧接着来学习OutputBuffer是如何上抛并且被处理的

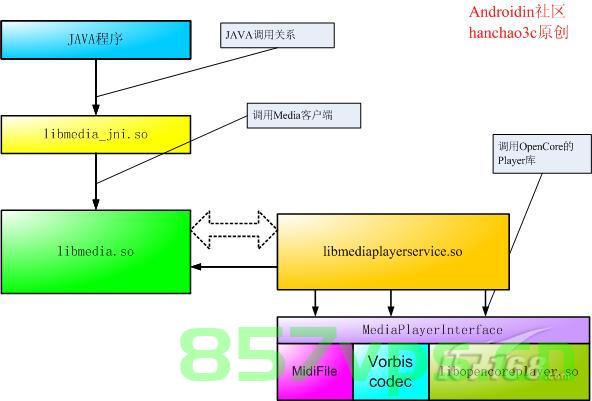

Android 13 - Media框架（33）- ACodec（九），Android 13中的Media框架，ACodec深度解析（九）第1张

（图片来源网络，侵删）

1、CodecObserver::onMessages

virtual void onMessages(const std::list &messages) {
        for (std::list::const_iterator it = messages.cbegin();
              it != messages.cend(); ++it) {
            const omx_message &omx_msg = *it;
            sp msg = new AMessage;
            msg->setInt32("type", omx_msg.type);
            switch (omx_msg.type) {
                case omx_message::FILL_BUFFER_DONE:
                {
                    msg->setInt32(
                            "buffer", omx_msg.u.extended_buffer_data.buffer);
                    msg->setInt32(
                            "range_offset",
                            omx_msg.u.extended_buffer_data.range_offset);
                    msg->setInt32(
                            "range_length",
                            omx_msg.u.extended_buffer_data.range_length);
                    msg->setInt32(
                            "flags",
                            omx_msg.u.extended_buffer_data.flags);
                    msg->setInt64(
                            "timestamp",
                            omx_msg.u.extended_buffer_data.timestamp);
                    msg->setInt32(
                            "fence_fd", omx_msg.fenceFd);
                    break;
                }
            }
            msgList->getList().push_back(msg);
        }
        notify->setObject("messages", msgList);
        notify->post();
}

OMXNodeInstance通过CodecObserver将event和message组织成为omx_message后上抛给ACodec，这一节我们重点来看OutputBuffer的处理流程。

因为OutputBuffer是被OMX组件填充完成，所以上抛的消息名称为FILL_BUFFER_DONE，组织到omx_message中的信息包含

Android 13 - Media框架（33）- ACodec（九），Android 13中的Media框架，ACodec深度解析（九）第2张

（图片来源网络，侵删）

buffer id：buffer索引；
buffer offset：buffer中数据的偏移量；
buffer length：buffer中数据的长度；
flags：携带的标志位；
timestamp：该帧的时间戳；

fence fd：同步句柄；

2、BaseState::onOMXFillBufferDone

消息会发送到ACodec Looper线程中，最终在ACodec::BaseState::onOMXFillBufferDone函数中做处理：

bool ACodec::BaseState::onOMXFillBufferDone(
        IOMX::buffer_id bufferID,
        size_t rangeOffset, size_t rangeLength,
        OMX_U32 flags,
        int64_t timeUs,
        int fenceFd) {
    ALOGV("[%s] onOMXFillBufferDone %u time %" PRId64 " us, flags = 0x%08x",
         mCodec->mComponentName.c_str(), bufferID, timeUs, flags);
    ssize_t index;
    status_t err= OK;
    // 这部分是预埋的log，某一帧pts的输出时间 - 某一帧pts的输入时间 = 该帧的解码时长
#if TRACK_BUFFER_TIMING
    index = mCodec->mBufferStats.indexOfKey(timeUs);
    if (index >= 0) {
        ACodec::BufferStats *stats = &mCodec->mBufferStats.editValueAt(index);
        stats->mFillBufferDoneTimeUs = ALooper::GetNowUs();
        ALOGI("frame PTS %lld: %lld",
                timeUs,
                stats->mFillBufferDoneTimeUs - stats->mEmptyBufferTimeUs);
        mCodec->mBufferStats.removeItemsAt(index);
        stats = NULL;
    }
#endif
    // 遍历BufferInfo数组，根据buffer id找到对应的BufferInfo
    BufferInfo *info =
        mCodec->findBufferByID(kPortIndexOutput, bufferID, &index);
    // 检查当前BufferInfo的状态
    BufferInfo::Status status = BufferInfo::getSafeStatus(info);
    if (status != BufferInfo::OWNED_BY_COMPONENT) {
        ALOGE("Wrong ownership in FBD: %s(%d) buffer #%u", _asString(status), status, bufferID);
        mCodec->dumpBuffers(kPortIndexOutput);
        mCodec->signalError(OMX_ErrorUndefined, FAILED_TRANSACTION);
        if (fenceFd >= 0) {
            ::close(fenceFd);
        }
        return true;
    }
    // 记录当前 BufferInfo 在第几帧输出被使用
    info->mDequeuedAt = ++mCodec->mDequeueCounter;
    // 修改当前 BufferInfo 状态
    info->mStatus = BufferInfo::OWNED_BY_US;
    if (info->mRenderInfo != NULL) {
        // The fence for an emptied buffer must have signaled, but there still could be queued
        // or out-of-order dequeued buffers in the render queue prior to this buffer. Drop these,
        // as we will soon requeue this buffer to the surface. While in theory we could still keep
        // track of buffers that are requeued to the surface, it is better to add support to the
        // buffer-queue to notify us of released buffers and their fences (in the future).
        mCodec->notifyOfRenderedFrames(true /* dropIncomplete */);
    }
    // byte buffers cannot take fences, so wait for any fence now
    if (mCodec->mNativeWindow == NULL) {
        (void)mCodec->waitForFence(fenceFd, "onOMXFillBufferDone");
        fenceFd = -1;
    }
    info->setReadFence(fenceFd, "onOMXFillBufferDone");
    // 获取当前端口模式
    PortMode mode = getPortMode(kPortIndexOutput);
    switch (mode) {
        // 如果端口状态为 KEEP_BUFFERS，那么ACodec 持有Buffer，什么都不做
        case KEEP_BUFFERS:
            break;
        case RESUBMIT_BUFFERS:
        {
            // 如果数据长度为0，并且flag不是eos，说明这是一帧无效输出
            if (rangeLength == 0 && (!(flags & OMX_BUFFERFLAG_EOS)
                    || mCodec->mPortEOS[kPortIndexOutput])) {
                ALOGV("[%s] calling fillBuffer %u",
                     mCodec->mComponentName.c_str(), info->mBufferID);
                // 重新送给OMX组件填充
                err = mCodec->fillBuffer(info);
                if (err != OK) {
                    mCodec->signalError(OMX_ErrorUndefined, makeNoSideEffectStatus(err));
                    return true;
                }
                break;
            }
            sp buffer = info->mData;
            // 给 BufferInfo 设置 format
            if (mCodec->mOutputFormat != mCodec->mLastOutputFormat && rangeLength > 0) {
                // pretend that output format has changed on the first frame (we used to do this)
                if (mCodec->mBaseOutputFormat == mCodec->mOutputFormat) {
                    mCodec->onOutputFormatChanged(mCodec->mOutputFormat);
                }
                mCodec->sendFormatChange();
            }
            buffer->setFormat(mCodec->mOutputFormat);
            if (mCodec->usingSecureBufferOnEncoderOutput()) {
                native_handle_t *handle = NULL;
                sp secureBuffer = static_cast(buffer.get());
                if (secureBuffer != NULL) {
#ifdef OMX_ANDROID_COMPILE_AS_32BIT_ON_64BIT_PLATFORMS
                    // handle is only valid on 32-bit/mediaserver process
                    handle = NULL;
#else
                    handle = (native_handle_t *)secureBuffer->getDestinationPointer();
#endif
                }
                buffer->meta()->setPointer("handle", handle);
                buffer->meta()->setInt32("rangeOffset", rangeOffset);
                buffer->meta()->setInt32("rangeLength", rangeLength);
            } else if (buffer->base() == info->mCodecData->base()) {
                // 如果不需要converter做转换，即codecData 和 mData指向同一块缓冲区，则直接设定buffer的读取范围
                buffer->setRange(rangeOffset, rangeLength);
            } else {
                // 如果需要converter，则做数据转换，将codecData中的数据转换到mData中
                info->mCodecData->setRange(rangeOffset, rangeLength);
                // in this case we know that mConverter is not null
                status_t err = mCodec->mConverter[kPortIndexOutput]->convert(
                        info->mCodecData, buffer);
                if (err != OK) {
                    mCodec->signalError(OMX_ErrorUndefined, makeNoSideEffectStatus(err));
                    return true;
                }
            }
#if 0
            // 如果没有native window，如果mData中的数据可访问，可以检查是否是IDR帧
            if (mCodec->mNativeWindow == NULL) {
                if (IsIDR(info->mData->data(), info->mData->size())) {
                    ALOGI("IDR frame");
                }
            }
#endif
            if (mCodec->mSkipCutBuffer != NULL) {
                mCodec->mSkipCutBuffer->submit(buffer);
            }
            // 设置 BufferInfo 的时间戳
            buffer->meta()->setInt64("timeUs", timeUs);
            // 清除 BufferInfo 对 mData 的引用
            info->mData.clear();
            // 将 BufferID 交给 BufferChannel，让他上抛给 MediaCodec
            mCodec->mBufferChannel->drainThisBuffer(info->mBufferID, flags);
            // 设置 BufferInfo 的状态为 OWNED_BY_DOWNSTREAM
            info->mStatus = BufferInfo::OWNED_BY_DOWNSTREAM;
            // 如果是 EOS，那么需要标注端口收到 EOS
            if (flags & OMX_BUFFERFLAG_EOS) {
                ALOGV("[%s] saw output EOS", mCodec->mComponentName.c_str());
                mCodec->mCallback->onEos(mCodec->mInputEOSResult);
                mCodec->mPortEOS[kPortIndexOutput] = true;
            }
            break;
        }
        case FREE_BUFFERS:
            // 如果端口状态为 Free_Buffers，那么就释放掉该output Buffer
            err = mCodec->freeBuffer(kPortIndexOutput, index);
            if (err != OK) {
                mCodec->signalError(OMX_ErrorUndefined, makeNoSideEffectStatus(err));
                return true;
            }
            break;
        default:
            ALOGE("Invalid port mode: %d", mode);
            return false;
    }
    return true;
}

这部分的代码有一点点长，但是思路很简单，主要是要理清getPortMode的意思：

OMX callback 回来的是一个 id，我们首先要利用这个id，找到ACodec存储的BufferInfo，以及BufferInfo在数组中的索引；
检查BufferInfo的归属，是否是属于OMX组件，如果不是则状态异常；
记录当前输出帧数，同时记录当前 BufferInfo 在第几帧输出被使用，这在之前的章节中已经讲过如何使用了；
修改当前 BufferInfo 的归属为 ACodec；
获取当前端口模式，这个步骤非常关键，所谓端口模式，指的就是当前播放器状态，普通状态下port mode为KEEP_BUFFERS，表示ACodec会持有buffer，不做任何动作；运行状态下port mode为RESUBMIT_BUFFERS，ACodec会向目标提交Buffer，保持Buffer的流转；OutputPortSettingsChangedState状态下，会直接销毁 Output Buffer，这一部分内容在前一节中已经学习过了；KEEP_BUFFERS很简单，所以我们只看RESUBMIT_BUFFERS。
检查buffer数据长度，如果数据长度为0，并且flag不是eos，说明这是一帧无效输出，直接重新送给OMX组件填充；
获取 BufferInfo 中与 ACodecBufferChannel 交互的 MediaCodecBuffer（mData），为改mData设置输出格式，设置缓冲区的范围和偏移量，以及时间戳；
设置完成后移除 BufferInfo 对改 MediaCodecBuffer 的引用；
调用 ACodecBufferChannel 的 drainThisBuffer 方法，将Buffer传递给MediaCodec；
设置BufferInfo的归属为上层（OWNED_BY_DOWNSTREAM）；
如果flag是 EOS，那么需要标注端口收到 EOS。

到这FILL_BUFFER_DONE的消息就处理完成了。

3、BaseState::onOutputBufferDrained

上层做完Avsync后会调用MediaCodec方法，将OutputBuffer渲染出去或者drop掉，消息最终会进入到BaseState::onMessageReceived中来处理：

bool ACodec::BaseState::onMessageReceived(const sp &msg) {
    switch (msg->what()) {
        case kWhatOutputBufferDrained:
        {
            onOutputBufferDrained(msg);
            break;
        }
    }
}

搜索代码我们会发现，onOutputBufferDrained有多个覆写，

void ACodec::ExecutingToIdleState::onOutputBufferDrained(
        const sp &msg) {
    BaseState::onOutputBufferDrained(msg);
    changeStateIfWeOwnAllBuffers();
}
void ACodec::FlushingState::onOutputBufferDrained(const sp &msg) {
    BaseState::onOutputBufferDrained(msg);
    changeStateIfWeOwnAllBuffers();
}

ExecutingToIdleState 和 FlushingState 下也是调用的 BaseState::onOutputBufferDrained，只是要多调用一个 changeStateIfWeOwnAllBuffers 方法。

我们先来看 BaseState::onOutputBufferDrained：

void ACodec::BaseState::onOutputBufferDrained(const sp &msg) {
    IOMX::buffer_id bufferID;
    // 获取要处理的 Output Buffer id，以及对应的 mData
    CHECK(msg->findInt32("buffer-id", (int32_t*)&bufferID));
    sp obj;
    CHECK(msg->findObject("buffer", &obj));
    sp buffer = static_cast(obj.get());
    int32_t discarded = 0;
    // 是否render or drop
    msg->findInt32("discarded", &discarded);
    // 找到id对应的 BufferInfo
    ssize_t index;
    BufferInfo *info = mCodec->findBufferByID(kPortIndexOutput, bufferID, &index);
    // 获取 BufferInfo 的归属
    BufferInfo::Status status = BufferInfo::getSafeStatus(info);
    if (status != BufferInfo::OWNED_BY_DOWNSTREAM) {
        ALOGE("Wrong ownership in OBD: %s(%d) buffer #%u", _asString(status), status, bufferID);
        mCodec->dumpBuffers(kPortIndexOutput);
        mCodec->signalError(OMX_ErrorUndefined, FAILED_TRANSACTION);
        return;
    }
    // 重新将 BufferInfo 的mData指向 MediaCodecBuffer
    info->mData = buffer;
    int32_t render;
    // 如果需要render则进入分支
    if (mCodec->mNativeWindow != NULL
            && msg->findInt32("render", &render) && render != 0
            && !discarded && buffer->size() != 0) {
        ATRACE_NAME("render");
        // The client wants this buffer to be rendered.
        // 如果需要剪裁，则进行剪裁处理
        android_native_rect_t crop;
        if (buffer->format()->findRect("crop", &crop.left, &crop.top, &crop.right, &crop.bottom)) {
            // NOTE: native window uses extended right-bottom coordinate
            ++crop.right;
            ++crop.bottom;
            if (memcmp(&crop, &mCodec->mLastNativeWindowCrop, sizeof(crop)) != 0) {
                mCodec->mLastNativeWindowCrop = crop;
                status_t err = native_window_set_crop(mCodec->mNativeWindow.get(), &crop);
                ALOGW_IF(err != NO_ERROR, "failed to set crop: %d", err);
            }
        }
        // 判断上层是否指定数据空间
        int32_t dataSpace;
        if (buffer->format()->findInt32("android._dataspace", &dataSpace)
                && dataSpace != mCodec->mLastNativeWindowDataSpace) {
            status_t err = native_window_set_buffers_data_space(
                    mCodec->mNativeWindow.get(), (android_dataspace)dataSpace);
            mCodec->mLastNativeWindowDataSpace = dataSpace;
            ALOGW_IF(err != NO_ERROR, "failed to set dataspace: %d", err);
        }
        // 判断上层是否指定HDR info
        if (buffer->format()->contains("hdr-static-info")) {
            HDRStaticInfo info;
            if (ColorUtils::getHDRStaticInfoFromFormat(buffer->format(), &info)
                && memcmp(&mCodec->mLastHDRStaticInfo, &info, sizeof(info))) {
                setNativeWindowHdrMetadata(mCodec->mNativeWindow.get(), &info);
                mCodec->mLastHDRStaticInfo = info;
            }
        }
        sp hdr10PlusInfo;
        if (buffer->format()->findBuffer("hdr10-plus-info", &hdr10PlusInfo)
                && hdr10PlusInfo != nullptr && hdr10PlusInfo->size() > 0
                && hdr10PlusInfo != mCodec->mLastHdr10PlusBuffer) {
            native_window_set_buffers_hdr10_plus_metadata(mCodec->mNativeWindow.get(),
                    hdr10PlusInfo->size(), hdr10PlusInfo->data());
            mCodec->mLastHdr10PlusBuffer = hdr10PlusInfo;
        }
        // save buffers sent to the surface so we can get render time when they return
        int64_t mediaTimeUs = -1;
        buffer->meta()->findInt64("timeUs", &mediaTimeUs);
        if (mediaTimeUs >= 0) {
            mCodec->mRenderTracker.onFrameQueued(
                    mediaTimeUs, info->mGraphicBuffer, new Fence(::dup(info->mFenceFd)));
        }
        // 查找上层是否有设定渲染的系统时间，如果没有设定则将pts*1000作为渲染的系统时间
        int64_t timestampNs = 0;
        if (!msg->findInt64("timestampNs", &timestampNs)) {
            // use media timestamp if client did not request a specific render timestamp
            if (buffer->meta()->findInt64("timeUs", &timestampNs)) {
                ALOGV("using buffer PTS of %lld", (long long)timestampNs);
                timestampNs *= 1000;
            }
        }
        // 设置OutputBuffer的渲染时间，并且将Buffer加入到队列中
        status_t err;
        err = native_window_set_buffers_timestamp(mCodec->mNativeWindow.get(), timestampNs);
        ALOGW_IF(err != NO_ERROR, "failed to set buffer timestamp: %d", err);
        info->checkReadFence("onOutputBufferDrained before queueBuffer");
        err = mCodec->mNativeWindow->queueBuffer(
                    mCodec->mNativeWindow.get(), info->mGraphicBuffer.get(), info->mFenceFd);
        info->mFenceFd = -1;
        if (err == OK) {
            // 切换BufferInfo归属
            info->mStatus = BufferInfo::OWNED_BY_NATIVE_WINDOW;
        } else {
            ALOGE("queueBuffer failed in onOutputBufferDrained: %d", err);
            mCodec->signalError(OMX_ErrorUndefined, makeNoSideEffectStatus(err));
            info->mStatus = BufferInfo::OWNED_BY_US;
            // keeping read fence as write fence to avoid clobbering
            info->mIsReadFence = false;
        }
    } else {
        if (mCodec->mNativeWindow != NULL && (discarded || buffer->size() != 0)) {
            // move read fence into write fence to avoid clobbering
            info->mIsReadFence = false;
            ATRACE_NAME("frame-drop");
        }
        // 如果drop frame，则直接修改归属为 ACodec
        info->mStatus = BufferInfo::OWNED_BY_US;
    }
    // 获取当前的 port mode
    PortMode mode = getPortMode(kPortIndexOutput);
    switch (mode) {
        case KEEP_BUFFERS:
        {
            // XXX fishy, revisit!!! What about the FREE_BUFFERS case below?
            // 如果是 keep Buffer，则从native window获取一个buffer，并且不做任何动作
            if (info->mStatus == BufferInfo::OWNED_BY_NATIVE_WINDOW) {
                // We cannot resubmit the buffer we just rendered, dequeue
                // the spare instead.
                info = mCodec->dequeueBufferFromNativeWindow();
            }
            break;
        }
        case RESUBMIT_BUFFERS:
        {
            if (!mCodec->mPortEOS[kPortIndexOutput]) {
                if (info->mStatus == BufferInfo::OWNED_BY_NATIVE_WINDOW) {
                    // We cannot resubmit the buffer we just rendered, dequeue
                    // the spare instead.
                    // 获取一块新的outputbuffer
                    info = mCodec->dequeueBufferFromNativeWindow();
                }
                // 将OutputBuffer提交给 OMX组件使用
                if (info != NULL) {
                    ALOGV("[%s] calling fillBuffer %u",
                         mCodec->mComponentName.c_str(), info->mBufferID);
                    info->checkWriteFence("onOutputBufferDrained::RESUBMIT_BUFFERS");
                    status_t err = mCodec->fillBuffer(info);
                    if (err != OK) {
                        mCodec->signalError(OMX_ErrorUndefined, makeNoSideEffectStatus(err));
                    }
                }
            }
            break;
        }
        case FREE_BUFFERS:
        {
            // 如果是 FREE_BUFFERS，则直接释放Buffer
            status_t err = mCodec->freeBuffer(kPortIndexOutput, index);
            if (err != OK) {
                mCodec->signalError(OMX_ErrorUndefined, makeNoSideEffectStatus(err));
            }
            break;
        }
        default:
            ALOGE("Invalid port mode: %d", mode);
            return;
    }
}

我已经在代码中对BaseState::onOutputBufferDrained做了注释，相信有仔细阅读前面文章的小伙伴很容就知道在部分在做什么了。

至于changeStateIfWeOwnAllBuffers是在做什么，我们后续再做学习!

这一节到这就结束了。
