Docker 安装 Elasticsearch8.8.2\kibana8.8.2\Logstash8.8.2\Filebeat:8.8.2[亲测可用]，Docker 安装 Elasticsearch、Kibana、Logstash 和 Filebeat 四大组件 8.8.2 版本实测指南

摘要：本文介绍了 Docker 安装 Elasticsearch 8.8.2、Kibana 8.8.2、Logstash 8.8.2 和 Filebeat 8.8.2 的过程。经过实际测试，这些软件在 Docker 上的安装是可行的。这为需要集成这些组件的用户提供了一个便捷的方式，通过 Docker 可以轻松部署和管理这些工具，从而更有效地处理日志和数据分析任务。

（注：安装ELK8.4.3，Java版本必须是java17JDK）

一、Elasticsearch8.8.2部署

1、下载elasticsearch镜像：

docker pull docker.elastic.co/elasticsearch/elasticsearch:8.8.2

2、创建docker网络：

docker network create --driver bridge --subnet 172.18.0.0/16 elastic

3、创建Elasticsearch挂载目录

mkdir -p /usr/elk8.8.2/elasticsearch

4、给创建的文件夹授权

chmod 777 /usr/elk8.8.2/elasticsearch

5、第一次执行容器

docker run -it \

--name elastic --network=elastic --ip=172.18.0.2 \

-p 9200:9200 -p 9300:9300 \

-e "discovery.type=single-node" \

docker.elastic.co/elasticsearch/elasticsearch:8.8.2

6、将容器内的文件复制到主机上

docker cp elastic:/usr/share/elasticsearch/config /usr/elk8.8.2/elasticsearch/

docker cp elastic:/usr/share/elasticsearch/data /usr/elk8.8.2/elasticsearch/

docker cp elastic:/usr/share/elasticsearch/plugins /usr/elk8.8.2/elasticsearch/

docker cp elastic:/usr/share/elasticsearch/logs /usr/elk8.8.2/elasticsearch/

7、删除容器

docker rm -f elastic

8、创建elasticsearch容器，名称elastic，加入网络elastic：

docker run -itd --name elastic --net elastic --restart=always \
-p 9200:9200 -p 9300:9300 \
-v /usr/elk8.8.2/elasticsearch/data:/usr/share/elasticsearch/data \
-v /usr/elk8.8.2/elasticsearch/plugins:/usr/share/elasticsearch/plugins \
-v /usr/elk8.8.2/elasticsearch/logs:/usr/share/elasticsearch/logs \
-v /usr/elk8.8.2/elasticsearch/config:/usr/share/elasticsearch/config \
--log-opt max-size=10m --log-opt max-file=3 \
--ip 172.18.0.2 \
docker.elastic.co/elasticsearch/elasticsearch:8.8.2

9、查看容器是否创建成功：

docker ps -a

10、查看Elasticsearch分配的IP：

docker inspect -f '{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}' elastic

11、通过本机IP用https://访问并登录elasticsearch，登录用户名是elastic，密码需要从Elasticsearch日志里

查看Elasticsearch日志：docker logs -f elastic

✅ Elasticsearch security features have been automatically configured!
✅ Authentication is enabled and cluster connections are encrypted.
ℹ️  Password for the elastic user (reset with `bin/elasticsearch-reset-password -u elastic`):
  Dx2SOh9cHZogN7kILzoR
ℹ️  HTTP CA certificate SHA-256 fingerprint:
  c2e324295466cab02f47d06f1ea432e3f42b23e0c63c502d7478682d0bad946c
ℹ️  Configure Kibana to use this cluster:
• Run Kibana and click the configuration link in the terminal when Kibana starts.
• Copy the following enrollment token and paste it into Kibana in your browser (valid for the next 30 minutes):
  eyJ2ZXIiOiI4LjguMiIsImFkciI6WyIxNzIuMTguMC4yOjkyMDAiXSwiZmdyIjoiYzJlMzI0Mjk1NDY2Y2FiMDJmNDdkMDZmMWVhNDMyZTNmNDJiMjNlMGM2M2M1MDJkNzQ3ODY4MmQwYmFkOTQ2YyIsImtleSI6IktMR01uNHdCSkRFb2dIMVg5ZEVEOjhFQ0M2b2VoUXZxYjBzRU9DZk1Wc2cifQ==
ℹ️ Configure other nodes to join this cluster:
• Copy the following enrollment token and start new Elasticsearch nodes with `bin/elasticsearch --enrollment-token ` (valid for the next 30 minutes):
  eyJ2ZXIiOiI4LjguMiIsImFkciI6WyIxNzIuMTguMC4yOjkyMDAiXSwiZmdyIjoiYzJlMzI0Mjk1NDY2Y2FiMDJmNDdkMDZmMWVhNDMyZTNmNDJiMjNlMGM2M2M1MDJkNzQ3ODY4MmQwYmFkOTQ2YyIsImtleSI6IktyR01uNHdCSkRFb2dIMVg5ZEVNOmlTT05uVHNnUXA2Wjg1MnNoNUN3UVEifQ==
  If you're running in Docker, copy the enrollment token and run:
  `docker run -e "ENROLLMENT_TOKEN=" docker.elastic.co/elasticsearch/elasticsearch:8.8.2`

（注：Elasticsearch部署的时候是有时效性的，时间在30分钟，超过30分钟得重新生成token）

https://192.168.8.184:9200/

登录后就看到了基本信息：

12、进入Elasticsearch容器：

docker exec -it elastic /bin/bash

执行创建用户命令：bin/elasticsearch-users useradd Demo

角色授权：

bin/elasticsearch-users roles -a superuser Demo

bin/elasticsearch-users roles -a kibana_system Demo

（Kibana登录的时候就使用Demo的账号和密码进行登录就可以了）

13、设置开机自动启动：

docker update --restart=always 96f7744f5f7a

14、下面是Elasticsearch.yml的配置信息：

cluster.name: "docker-cluster"
network.host: 0.0.0.0
xpack.security.enabled: true
xpack.security.enrollment.enabled: true
xpack.security.http.ssl:
  enabled: true
  keystore.path: certs/http.p12
xpack.security.transport.ssl:
  enabled: true
  verification_mode: certificate
  keystore.path: certs/transport.p12
  truststore.path: certs/transport.p12

15、prometheus监控es

下载镜像：docker pull quay.io/prometheuscommunity/elasticsearch-exporter:latest

运行镜像：docker run --name es_exporter -d -p 9114:9114 --privileged=true --restart=always quay.io/prometheuscommunity/elasticsearch-exporter:latest

二、Kibana8.8.2部署

1、下载kibana镜像：

docker pull docker.elastic.co/kibana/kibana:8.8.2

2、创建kibana挂载目录

mkdir -p /usr/elk8.8.2/kibana

3、文件授权

sudo chown -R 1000:1000 /usr/elk8.8.2/kibana

4、第一次执行容器：

docker run -itd --name kibana --net elastic --restart=always \

-p 5601:5601 --log-driver json-file \

--log-opt max-size=10m --log-opt max-file=3 \

docker.elastic.co/kibana/kibana:8.8.2

5、将容器内的文件复制到主机上

docker cp kibana:/usr/share/kibana/config /usr/elk8.8.2/kibana/

docker cp kibana:/usr/share/kibana/data /usr/elk8.8.2/kibana/

docker cp kibana:/usr/share/kibana/plugins /usr/elk8.8.2/kibana/

docker cp kibana:/usr/share/kibana/logs /usr/elk8.8.2/kibana/

6、删除容器

docker rm -f kibana

7、创建Kibana容器，名称kibana，加入网络elastic

docker run -itd --name kibana --net elastic --restart=always \
-p 5601:5601 --log-driver json-file \
-v /usr/elk8.8.2/kibana/config:/usr/share/kibana/config \
-v /usr/elk8.8.2/kibana/data:/usr/share/kibana/data \
-v /usr/elk8.8.2/kibana/plugins:/usr/share/kibana/plugins \
-v /usr/elk8.8.2/kibana/logs:/usr/share/kibana/logs \
--log-opt max-size=10m --log-opt max-file=3 \
--ip 172.18.0.3 \
docker.elastic.co/kibana/kibana:8.8.2

8、查看容器是否创建成功：

docker ps -a

9、访问并进入Kibana:

输入本机IP访问http://192.168.8.184:5601/，输入Elasticsearch日志记录下来的enrollment-token，如果出现无法配置Elastic，那就证明enrollment-token已经超过了30分钟，已时效。

此时将采用创建kibana连接Elasticsearch的enrollment-token：

docker exec -it elastic /usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana

docker exec -it elastic /usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana
WARNING: Owner of file [/usr/share/elasticsearch/config/users] used to be [root], but now is [elasticsearch]
WARNING: Owner of file [/usr/share/elasticsearch/config/users_roles] used to be [root], but now is [elasticsearch]
eyJ2ZXIiOiI4LjguMiIsImFkciI6WyIxNzIuMjQuMC4yOjkyMDAiXSwiZmdyIjoiYTU3ODc0NjZiZTE1ZWI3YTZmYTczNjRjMzc3NzRmNjgyYzQyZGIzNzgzOWM3MDU0MjY1MmNlM2U4MTE4ZDAzYyIsI
mtleSI6IlpPVDZVWXdCcERMVmVEeWE1M3lVOjI1Wkd5X1dfUjVPWGlwVG5QTHlGY1EifQ==

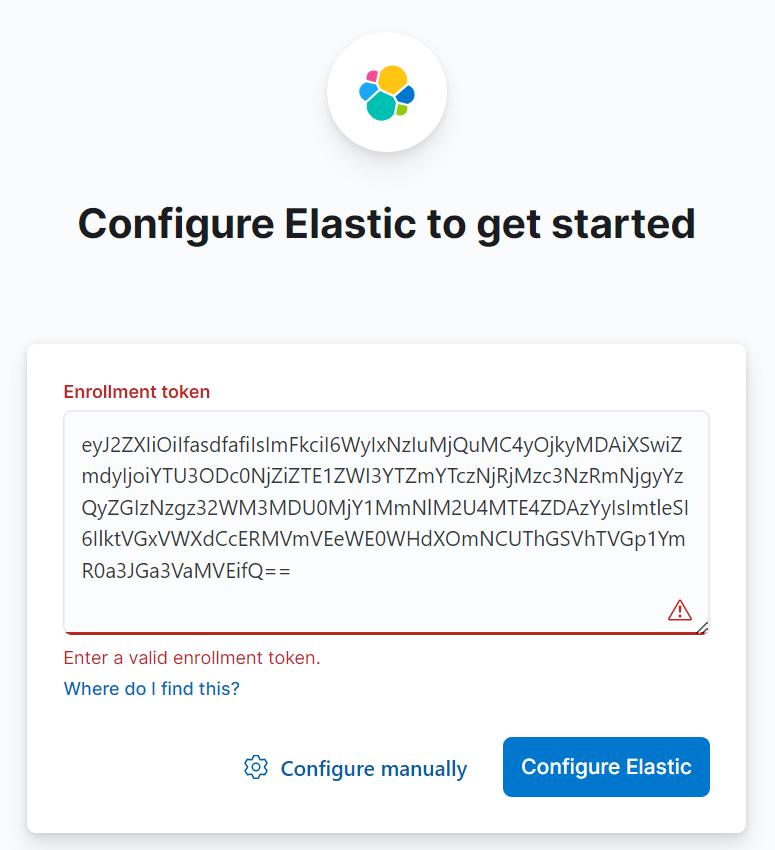

把产生的enrollment-token复制到多行文本框后，点击Configure Elastic继续操作

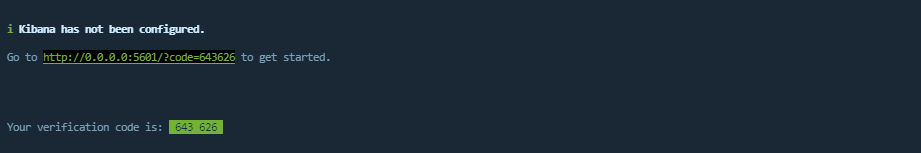

10、查看或生成verification-code：

查看Kibana日志可以看到verification-code：

docker logs -f kibana

或者可以执行kibana-verification-code命令，生成verification-code

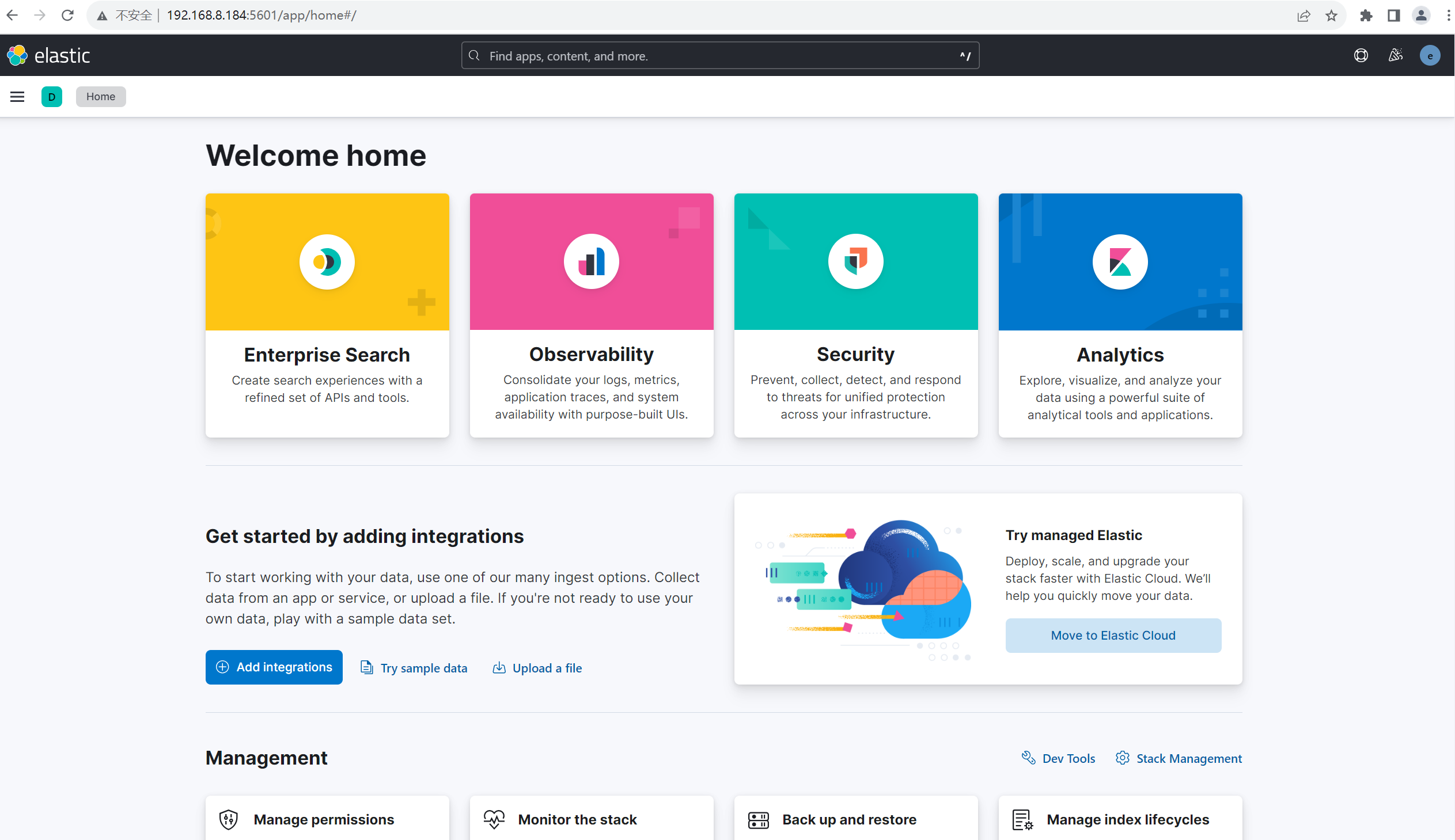

11、登录kibana

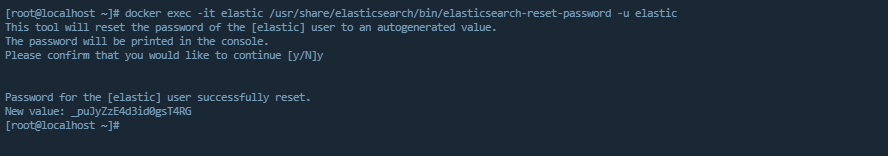

重置elastic密码：docker exec -it elastic /usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic

选择y继续

然后输入用户名：elastic，密码就是生成出来的New value后面的密码值

12、修改密码：

点击右上角的头像选择Edit profile，选择Change password，然后输入上一步生成的密码_puJyZzE4d3id0gsT4RG，然后再输入自己创建的新密码，选择Change password

13、添加中文语言：

进入kibana容器：docker exec -it kibana bash

添加中文： echo "i18n.locale: zh-CN" >> config/kibana.yml

退出容器进行重启：

exit

docker restart kibana

14、设置开机自动启动：

docker update --restart=always e1d516dd1601

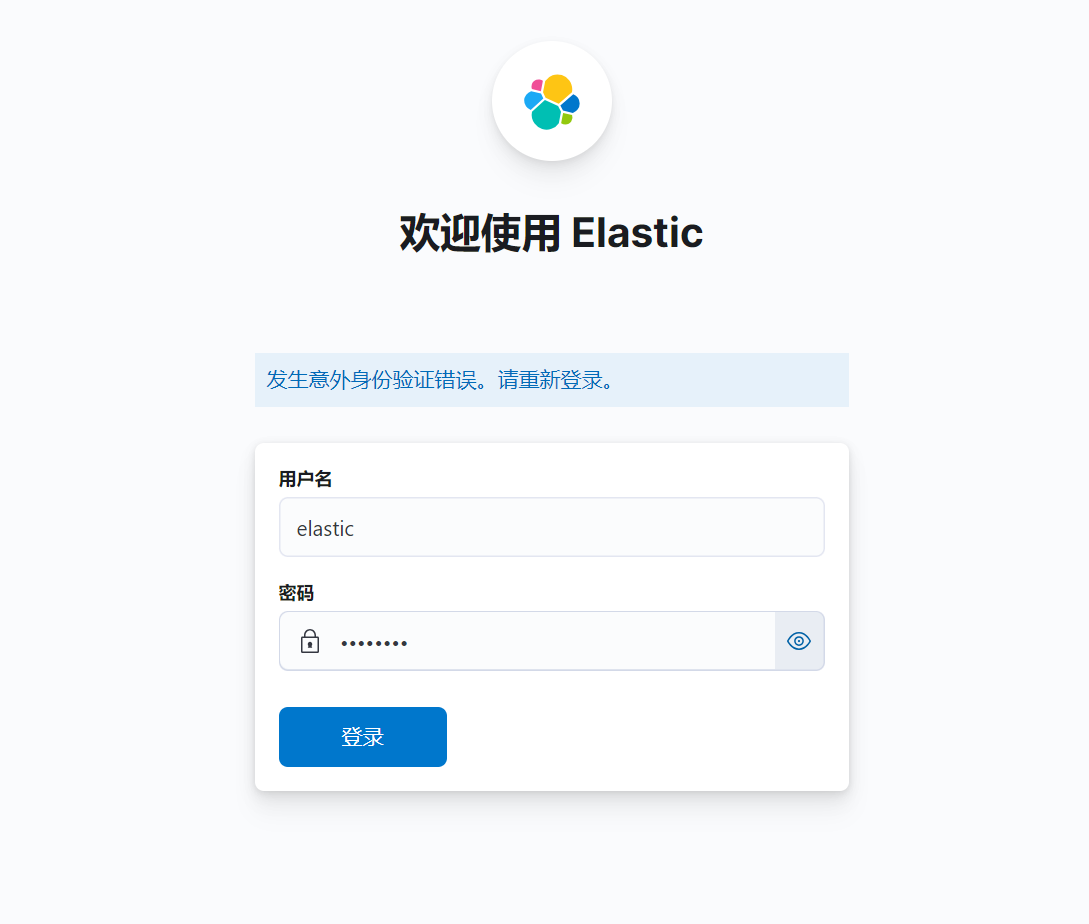

15、刷新浏览器页面进行就可以看到中文版的登录页面了，然后使用刚才自己设置的密码进行登录

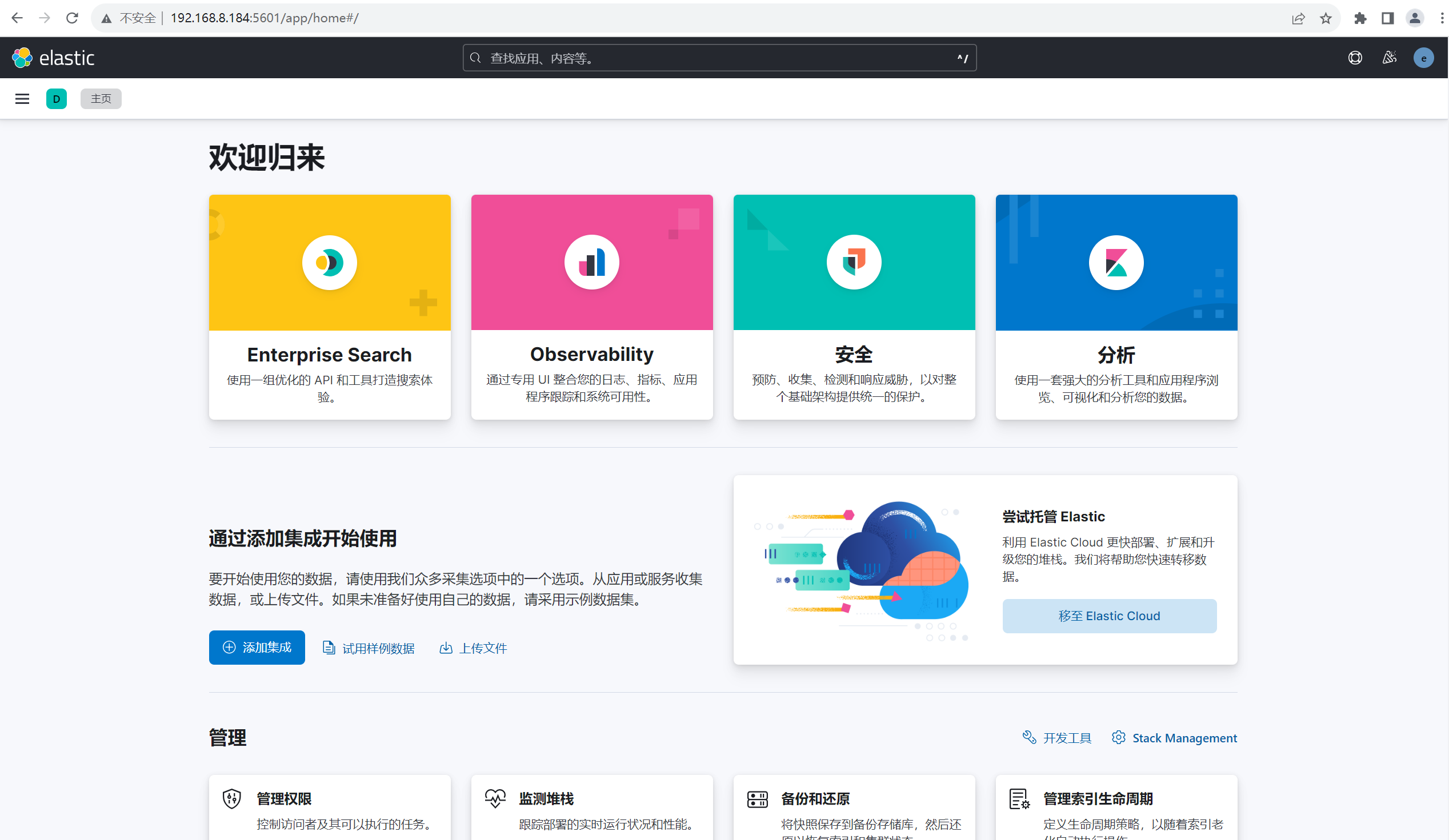

登录后的页面也变成了中文界面

15、下面的是kibana.yml的配置信息

server.host: 0.0.0.0
server.shutdownTimeout: 5s
elasticsearch.hosts: ['https://172.18.0.2:9200']
monitoring.ui.container.elasticsearch.enabled: true
elasticsearch.serviceAccountToken: AAEAAWVsYXN0aWMva2liYW5hL2Vucm9sbC1wcm9jZXNzLXRva2VuLTE3MDM0ODQyNTcxNjk6RVcwcWdYaXJU
QUstcS16Y1o4VmNRZw
elasticsearch.ssl.certificateAuthorities: [/usr/share/kibana/data/ca_1703484258615.crt]
xpack.fleet.outputs: [{id: fleet-default-output, name: default, is_default: true, is_default_monitoring: true, type: el
asticsearch, hosts: ['https://172.18.0.2:9200'], ca_trusted_fingerprint: c2e324295466cab02f47d06f1ea432e3f42b23e0c63c50
2d7478682d0bad946c}]

i18n.locale: zh-CN

16、prometheus监控kibana

下载镜像：

运行镜像：docker run -d --name kibana_exporter -e ELASTICSEARCH_HOSTS=http://192.168.8.184:9200 --network=es-net -p 1015:5601 kibana_exporter:8.4.3

docker run -d --name kibana_exporter -e ELASTICSEARCH_HOSTS=http://192.168.8.184:9200 --network=es-net -p 9675:9675 monitoringartist/kibana_exporter:latest

三、Logstash8.8.2部署

1、下载kibana镜像：

docker pull docker.elastic.co/logstash/logstash:8.8.2

2、创建Logstash挂载目录

mkdir -p /usr/elk8.8.2/logstash

3、文件授权

sudo chown -R 1000:1000 /usr/elk8.8.2/logstash

4、创建Logstash容器，名称logstash，加入网络elastic

docker run -itd --name logstash -p 9600:9600 -p 5044:5044 docker.elastic.co/logstash/logstash:8.8.2

5、将容器内的文件复制到主机上

docker cp logstash:/usr/share/logstash/config /usr/elk8.8.2/logstash/

docker cp logstash:/usr/share/logstash/pipeline /usr/elk8.8.2/logstash/

6、编辑信息logstash.yml

需要把es里的config下的certs复制到logstash下的config/certs目录里http_ca.crt

cd /usr/elk8.8.2/elasticsearch/config/ & cp -r certs /usr/elk8.8.2/logstash/config/

vim usr/elk8.8.2/logstash/config/logstash.yml

#（如果es没有设置账号密码，这里也不设置账号密码,如果es加了账号密码，这里需要增加es的认证和账号密码）
http.host: "0.0.0.0"
xpack.monitoring.enabled: true
xpack.monitoring.elasticsearch.hosts: ["https://172.18.0.2:9200"]
xpack.monitoring.elasticsearch.username: "Test"
xpack.monitoring.elasticsearch.password: "sloveb55"
xpack.monitoring.elasticsearch.ssl.certificate_authority: "/usr/share/logstash/config/certs/http_ca.crt"
#下面这一行去es记录的信息里可以找到，找HTTP CA certificate SHA-256 fingerprint的密文
#xpack.monitoring.elasticsearch.ssl.ca_trusted_fingerprint: "c2e324295466cab02f47d06f1ea432e3f42b23e0c63c502d7478682d0bad946c"

7、编辑pipelines.yml

- pipeline.id: main
  path.config: "/usr/share/logstash/pipeline"

8、编辑日志配置信息logstash.conf

vim usr/elk8.8.2/logstash/pipeline/logstash.conf

input {
        syslog {
                type => "system-syslog"
                port => 5044
        }
}
filter{

}
output {
        elasticsearch {
                 hosts => ["https://172.18.0.2:9200"]
                 index => "system-syslog-%{+YYYY.MM.dd}"
                 user => "Test"
                 password => "sloveb55"
                 codec => plain {
                        charset => "US-ASCII"
                 }
                 ssl_certificate_authorities => "/usr/share/logstash/config/certs/http_ca.crt"
        }
}

8、删除容器

docker rm -f logstash

9、创建Logstash容器，名称Logstash，加入网络elastic

docker run -itd --name logstash --net elastic --restart=always \
-p 9600:9600 -p 5044:5044 \
-v /usr/elk8.8.2/logstash/config:/usr/share/logstash/config \
-v /usr/elk8.8.2/logstash/pipeline:/usr/share/logstash/pipeline \
--log-opt max-size=10m --log-opt max-file=3 \
--ip 172.18.0.4 \
docker.elastic.co/logstash/logstash:8.8.2

10、开放端口

firewall-cmd --zone=public --add-port=5044/tcp --permanent && firewall-cmd --reload

firewall-cmd --zone=public --add-port=9600/tcp --permanent && firewall-cmd --reload

systemctl restart firewalld

11、查看容器是否创建成功：

docker ps -a

12、在Kibana里的索引管理里将看到刚才我们收集的日志

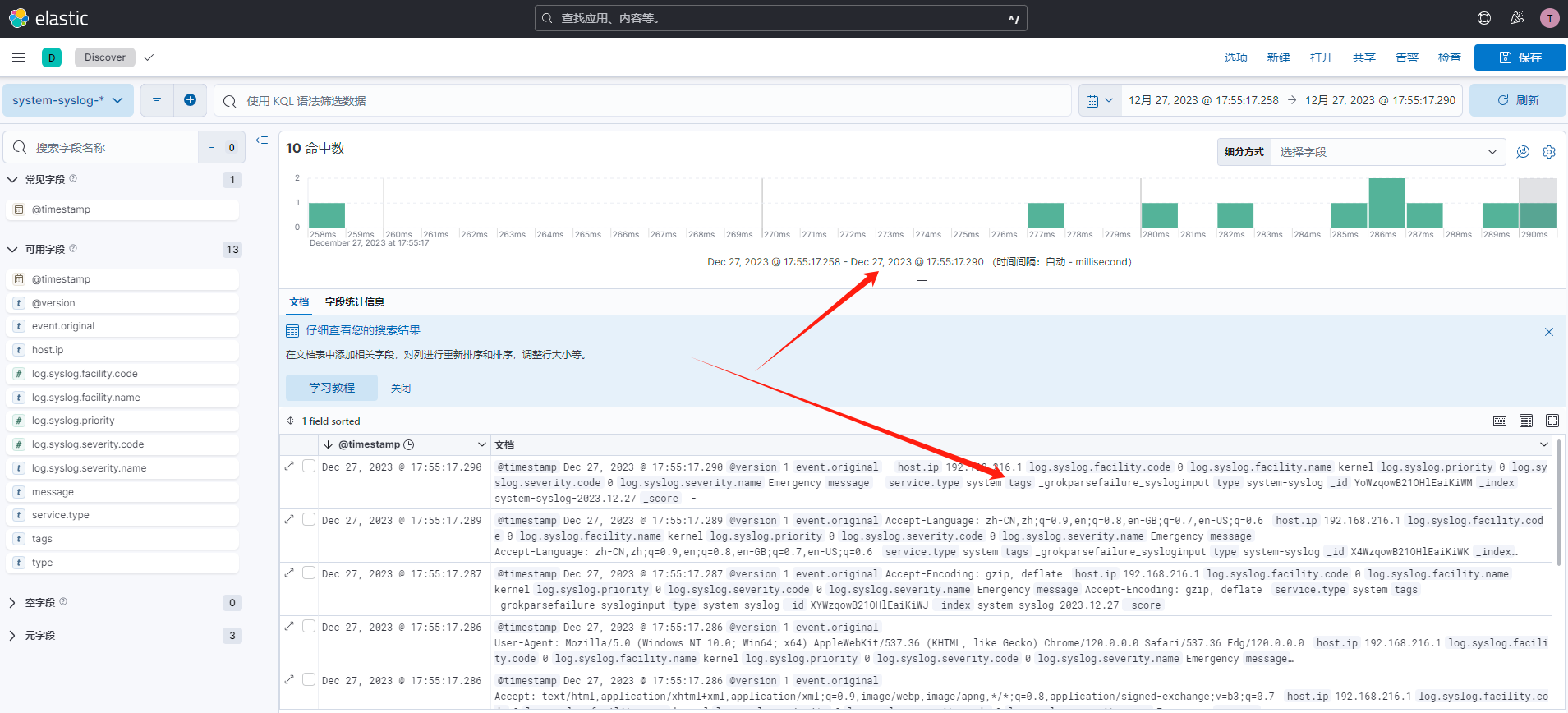

13、然后在Analytics的Discover里将看到具体的日志文件

四、Filebeat:8.8.2部署

1、下载镜像：

docker pull elastic/filebeat:8.8.2

2、创建Filebeat容器

docker run -itd \
    --name filebeat \
    --network host \
    -e TZ=Asia/Shanghai \
    elastic/filebeat:8.8.2 \
    filebeat -e  -c /usr/share/filebeat/filebeat.yml

3、创建Filebeat挂载目录：

mkdir -p /usr/elk8.8.2/filebeat/log

4、将容器内的文件复制到主机上

docker cp filebeat:/usr/share/filebeat/filebeat.yml /usr/elk8.8.2/filebeat/

docker cp filebeat:/usr/share/filebeat/data /usr/elk8.8.2/filebeat/

docker cp filebeat:/usr/share/filebeat/logs /usr/elk8.8.2/filebeat/

5、修改配置文件

vim /usr/elk8.8.2/filebeat/filebeat.yml

filebeat.config:
  modules:
    path: ${path.config}/modules.d/*.yml
    reload.enabled: false
processors:
  - add_cloud_metadata: ~
  - add_docker_metadata: ~
output.logstash:
  enabled: true
  # The Logstash hosts
  hosts: ["172.18.0.4:5044"]
filebeat.inputs:
- type: log
  enabled: true
  paths:
    - /usr/share/filebeat/target/*/*/*.log. # 这个路径是需要收集的日志路径，是docker容器中的路径
  scan_frequency: 10s
  exclude_lines: ['HEAD']
  exclude_lines: ['HTTP/1.1']
  multiline.pattern: '^[[:space:]]+(at|\.{3})\b|Exception|捕获异常'
  multiline.negate: false
  multiline.match: after

6、文件授权

sudo chown -R 1000:1000 /usr/elk8.8.2/filebeat

7、删除容器

docker rm -f filebeat

8、重新创建脚本

docker run -itd --name filebeat --restart=always \
--network host -e TZ=Asia/Shanghai \
-v /usr/elk8.8.2/filebeat/log:/usr/share/filebeat/target \
-v /usr/elk8.8.2/filebeat/filebeat.yml:/usr/share/filebeat/filebeat.yml \
-v /usr/elk8.8.2/filebeat/data:/usr/share/filebeat/data \
-v /usr/elk8.8.2/filebeat/logs:/usr/share/filebeat/logs \
elastic/filebeat:8.8.2 \
filebeat -e  -c /usr/share/filebeat/filebeat.yml
